SS-TECH VINA là đơn vị nhập khẩu và cung cấp bánh xe AGV với giá tốt nhất.
Vui lòng liên hệ để được tư vấn và báo giá ! 0889966386

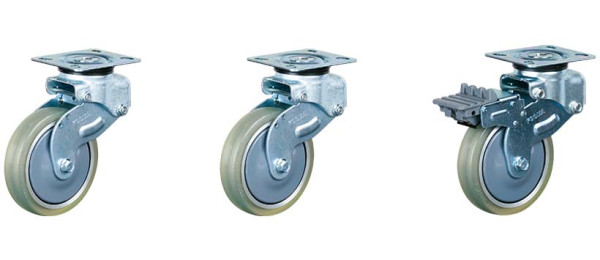

- G-100-ASF/ARF/BSF/BRF-LUD
| Wheel Diameter | 100 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |

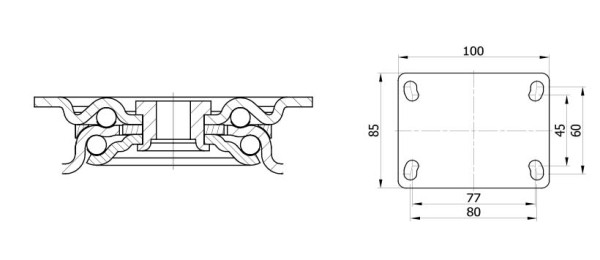

| Size of Plate | 100 x 85 mm |
| Plate Hole Centers | 80 x 60 or 77 x 45 mm |
| Plate Hole | 9 mm |
| Shock Absorbing Extent | 10 mm |
| Offset | 45 ~ 50 mm |
| Overall Height | 150 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 120 kg |
| Load Capacity / 4pcs | 360 kg |

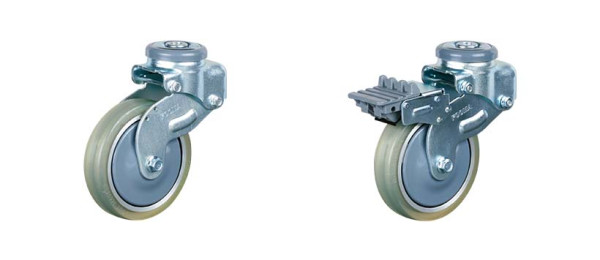

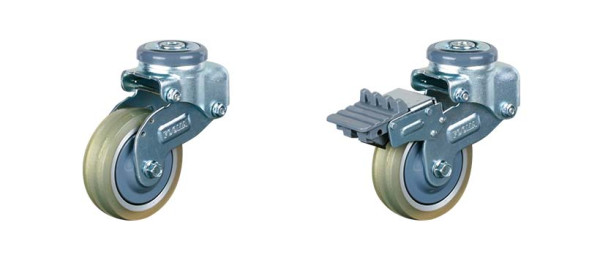

- G-100-ASS/BSS-LUD
| Wheel Diameter | 100 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |

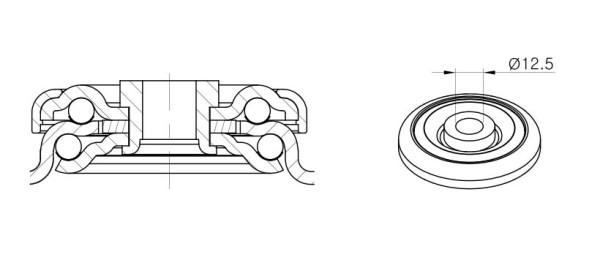

| Center Hole | 12.5 |
| Shock Absorbing Extent | 10 mm |
| Offset | 45 ~ 50 mm |
| Overall Height | 150 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 120 kg |
| Load Capacity / 4pcs | 360 kg |
- G-125-ASF/ARF/BSF/BRF-LUD
| Wheel Diameter | 125 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |
| Size of Plate | 100 x 85 mm |
| Plate Hole Centers | 80 x 60 or 77 x 45 mm |
| Plate Hole | 9 mm |
| Shock Absorbing Extent | 10 mm |
| Offset | 50 ~ 55 mm |
| Overall Height | 177.5 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 120 kg |
| Load Capacity / 4pcs | 360 kg |
- G-125-ASS/BSS-LUD
| Wheel Diameter | 125 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |
| Center Hole | 12.5 |
| Shock Absorbing Extent | 10 mm |
| Offset | 50 ~ 55 mm |
| Overall Height | 177.5 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 120 kg |
| Load Capacity / 4pcs | 360 kg |
- G-150-ASF/ARF/BSF/BRF-LUD
| Wheel Diameter | 150 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |
| Size of Plate | 100 x 85 mm |
| Plate Hole Centers | 80 x 60 or 77 x 45 mm |
| Plate Hole | 9 mm |
| Shock Absorbing Extent | 10 mm |
| Offset | 50 ~ 57 mm |
| Overall Height | 200 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 120 kg |
| Load Capacity / 4pcs | 360 kg |
- G-150-ASS/BSS-LUD
| Wheel Diameter | 150 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |
| Center Hole | 12.5 |
| Shock Absorbing Extent | 10 mm |
| Offset | 50 ~ 57 mm |
| Overall Height | 200 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 120 kg |
| Load Capacity / 4pcs | 360 kg |
