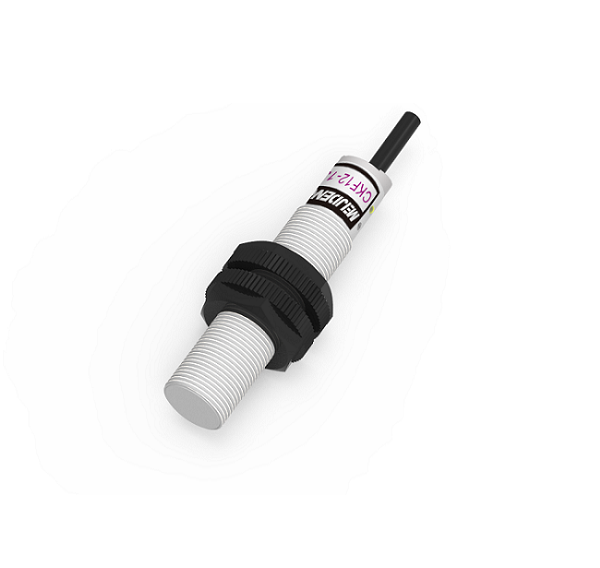

| Model | CKF12-03PC |
| Type | Shielded |
| Size | M12 |
| Sensing distance | 1~3mm Adjust |
| Material | PBT |
| Operating Voltage | 10~30V DC(Ripple＜10%) |
| Voltage drop | ＜2V |
| Load Current | 150mA |
| No load current | ＜10mA |
| Leakage Current | ＜0.01mA |
| Output Type | PNP Open collector， Normally Closed |
| Switch frequency | 100Hz |
| Response Time | 1.5ms |
| Repeat accuracy | ＜5%(Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PBT |
| Operating Temperature | -25℃~+70℃ |
| Protection | Short-circuit Protection |
| Protection Degree | IP 67 |
| Overload trip point | 180mA |
| Connection | 2M/3-wires cable |
| Model | CKF12-03PO |
| Type | Shielded |
| Size | M12 |
| Sensing distance | 1~3mm Adjust |
| Material | PBT |
| Operating Voltage | 10~30V DC(Ripple＜10%) |
| Voltage drop | ＜2V |
| Load Current | 150mA |
| No load current | ＜10mA |
| Leakage Current | ＜0.01mA |
| Output Type | PNP Open collector， Normally Open |
| Switch frequency | 100Hz |
| Response Time | 1.5ms |
| Repeat accuracy | ＜5%(Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PBT |
| Operating Temperature | -25℃~+70℃ |
| Protection | Short-circuit Protection |
| Protection Degree | IP 67 |
| Overload trip point | 180mA |
| Connection | 2M/3-wires cable |
| Model | CKF12-03NC |
| Type | Shielded |
| Size | M12 |
| Sensing distance | 1~3mm Adjust |
| Material | PBT |
| Operating Voltage | 10~30V DC(Ripple＜10%) |
| Voltage drop | ＜2V |
| Load Current | 150mA |
| No load current | ＜10mA |
| Leakage Current | ＜0.01mA |
| Output Type | NPN Open collector， Normally Closed |
| Switch frequency | 100Hz |
| Response Time | 1.5ms |
| Repeat accuracy | ＜5%(Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PBT |
| Operating Temperature | -25℃~+70℃ |
| Protection | Short-circuit Protection |
| Protection Degree | IP 67 |
| Overload trip point | 180mA |
| Connection | 2M/3-wires cable |
| Model | CKF12-03NO |
| Type | Shielded |
| Size | M12 |
| Sensing distance | 1~3mm Adjust |
| Material | PBT |
| Operating Voltage | 10~30V DC(Ripple＜10%) |
| Voltage drop | ＜2V |
| Load Current | 150mA |
| No load current | ＜10mA |
| Leakage Current | ＜0.01mA |
| Output Type | NPN Open collector， Normally Open |
| Switch frequency | 100Hz |
| Response Time | 1.5ms |
| Repeat accuracy | ＜5%(Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PBT |
| Operating Temperature | -25℃~+70℃ |
| Protection | Short-circuit Protection |
| Protection Degree | IP 67 |
| Overload trip point | 180mA |
| Connection | 2M/3-wires cable |
