Thông số kĩ thuật:

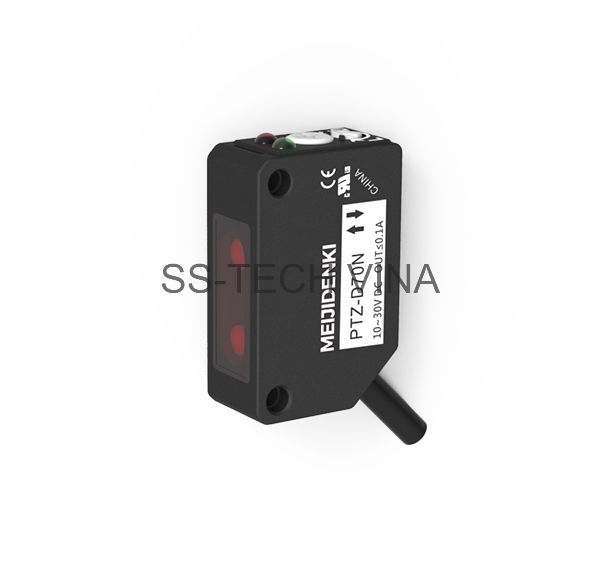

| Model | PTZ-D70N |
| Detection method | diffuse reflection |
| Detection distance | 100cm |
| spot size | φ75mm/100cm |
| output mode | NPN open collector,≤100mA/30V DC |
| switch mode | L.on (light receiving action)/D.on (light blocking action) can be switched |
| indicator light | Output indicator: orange; work indicator: green |
| Response time | 0.5ms |
| Sensitivity adjustment | Single-turn potentiometer |
| light source | Red LED (660nm) |
| Operating Voltage | 10~30V DC±10% |
| current consumption | ≤25mA |
| ambient luminosity | Sunlight exposure≤10000Lux; Incandescent light exposure≤3000Lux |
| ambient temperature | -25~+55℃, no freezing |
| environment humidity | 35~85%RH, no condensation |
| impact resistant | 100G(1000m/s2) |
| Protection class | IP 67 |
| material | ABS (shell) with glass fiber, PMMA (lens) |
| Way out | 2M/3 core cable |
Sơ đồ điện :
Kích thước:
Quý khách hàng có nhu cầu vui lòng liên hệ với nhân viên kinh doanh để được hỗ trợ và báo giá !
Xin cảm ơn !
Link: http://www.meijidenki.com/productsview.htm?id=1270
