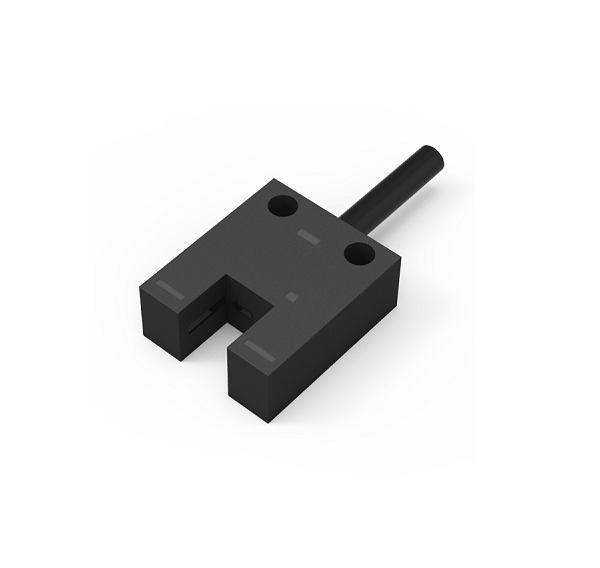

| Model | SU-201NA |
| Shell Material | U -Type |
| Slot width | 5mm |
| Standard detectable object | 0.8*1.8 mm |
| Repeat accuracy | 0.025 mm |
| Emitting Light | Infrared LED(940nm) |
| Output Type | NPN Open collector， Normally Open |
| Switch Mode | D.on ( Dark.ON ) |
| Indicator | When an object is detected OFF， No object ON |
| Operating Voltage | 24V DC±10% |
| Current Consumption | <15mA |
| Output | Residual voltage: <0.4V( Load Current: 5mA) |
| Protection | Surge Protection， Short-circuit Protection |
| Switch frequency | >1KHz |
| Ambient illuminance | <1000lux |
| Operating Temperature | On：-25~+55℃ storage：-30~+80℃ No freezing |
| Operating Humid | On：5~85%RH storage：5~95%RH No freezing |
| Vibration resistance | 10 to 55 Hz amplitude 1.5 mm in the X, Y, Z axis directions respectively, 2 hours |
| Shock resistance | 300m/s2 , X-Y-Z each for 1 times |
| Wiring Method | 1M/2-Wires cable |
| Weight | ≈13.5g |
| Shell Material Material | Shell,Cover: PBT; Emitter,Receiver: PC |
