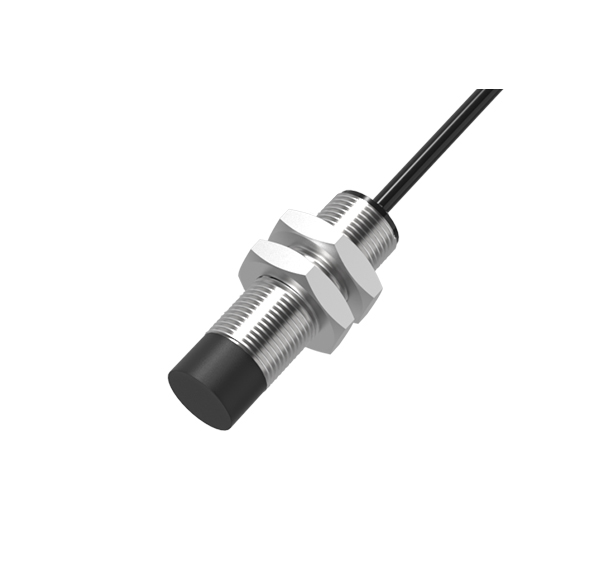

Cảm biến tiệm cận TJN30-25PO, TJN30-25PC, TJN30-25NO, TJN30-25NC

Name: Cảm biến tiệm cận TJN30-25PO, TJN30-25PC, TJN30-25NO, TJN30-25NC
SKU: 1385
Price: 1 VND
Availability: InStock

1 ₫

Mã hàng:

Xuất sứ: MEIJIDENKI (AKUSENSE)

Tình trạng hàng: Còn hàng

Model	TJN30-25PO
Type	Non-Shielded
Size	M30
Sensing distance	25mm±10%
Material	Nickel plated brass
Operating Voltage	10~30V DC
Voltage drop	＜2.0V
Load Current	200mA
No load current	＜10mA(24V)
Output Type	PNP Open collector， Normally Open
Switch frequency	100Hz
Repeat accuracy	＜1.0%(Sr)
Hysteresis	＜15%(Sr)
Material active face	PBT
Operating Temperature	-25℃~+70℃
Protection	Short-circuit Protection
Shell Protection Degree	IP 68
Connection	PVC cable/2M；3*0.34mm²

Model	TJN30-25PC
Type	Non-Shielded
Size	M30
Sensing distance	25mm±10%
Material	Nickel plated brass
Operating Voltage	10~30V DC
Voltage drop	＜2.0V
Load Current	200mA
No load current	＜10mA(24V)
Output Type	PNP Open collector， Normally Closed
Switch frequency	100Hz
Repeat accuracy	＜1.0%(Sr)
Hysteresis	＜15%(Sr)
Material active face	PBT
Operating Temperature	-25℃~+70℃
Protection	Short-circuit Protection
Shell Protection Degree	IP 68
Connection	PVC cable/2M；3*0.34mm²

Model	TJN30-25NO
Type	Non-Shielded
Size	M30
Sensing distance	25mm±10%
Material	Nickel plated brass
Operating Voltage	10~30V DC
Voltage drop	＜2.0V
Load Current	200mA
No load current	＜10mA(24V)
Output Type	NPN Open collector， Normally Open
Switch frequency	100Hz
Repeat accuracy	＜1.0%(Sr)
Hysteresis	＜15%(Sr)
Material active face	PBT
Operating Temperature	-25℃~+70℃
Protection	Short-circuit Protection
Shell Protection Degree	IP 68
Connection	PVC cable/2M；3*0.34mm²

Model	TJN30-25NC
Type	Non-Shielded
Size	M30
Sensing distance	25mm±10%
Material	Nickel plated brass
Operating Voltage	10~30V DC
Voltage drop	＜2.0V
Load Current	200mA
No load current	＜10mA(24V)
Output Type	NPN Open collector， Normally Closed
Switch frequency	100Hz
Repeat accuracy	＜1.0%(Sr)
Hysteresis	＜15%(Sr)
Material active face	PBT
Operating Temperature	-25℃~+70℃
Protection	Short-circuit Protection
Shell Protection Degree	IP 68
Connection	PVC cable/2M；3*0.34mm²
