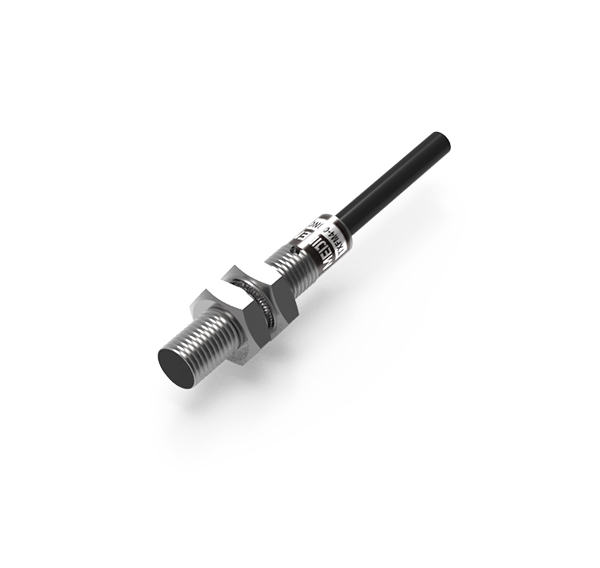

| Model | TXFM4-0.8PO |
| Type | Shielded |
| Size | M4 |
| Sensing distance | 0.8mm |
| Material | Stainless steel |
| Operating Voltage | 10~30V DC(Ripple＜10%) |
| Voltage drop | ＜1.5V |
| Load Current | 100mA |
| No load current | ＜10mA |
| Leakage Current | ＜0.01mA |
| Output Type | PNP Open collector， Normally Open |
| Switch frequency | 2KHz |
| Response Time | 0.1ms |
| Repeat accuracy | ＜1.0%(Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PA66 |
| Operating Temperature | -25℃~+70℃ |
| Protection | Non |
| Protection Degree | IP 67 |
| Overload trip point | 180mA |
| Connection | 2M/3-wires cable |
| Model | TXFM4-0.8PC |
| Type | Shielded |
| Size | M4 |
| Sensing distance | 0.8mm |
| Material | Stainless steel |
| Operating Voltage | 10~30V DC(Ripple＜10%) |
| Voltage drop | ＜1.5V |
| Load Current | 100mA |
| No load current | ＜10mA |
| Leakage Current | ＜0.01mA |
| Output Type | PNP Open collector， Normally Closed |
| Switch frequency | 2KHz |
| Response Time | 0.1ms |
| Repeat accuracy | ＜1.0%(Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PA66 |
| Operating Temperature | -25℃~+70℃ |
| Protection | Non |
| Protection Degree | IP 67 |
| Overload trip point | 180mA |
| Connection | 2M/3-wires cable |
| Model | TXFM4-0.8NO |
| Type | Shielded |
| Size | M4 |
| Sensing distance | 0.8mm |
| Material | Stainless steel |
| Operating Voltage | 10~30V DC(Ripple＜10%) |
| Voltage drop | ＜1.5V |
| Load Current | 100mA |
| No load current | ＜10mA |
| Leakage Current | ＜0.01mA |
| Output Type | NPN Open collector， Normally Open |
| Switch frequency | 2KHz |
| Response Time | 0.1ms |
| Repeat accuracy | ＜1.0%(Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PA66 |
| Operating Temperature | -25℃~+70℃ |
| Protection | Non |
| Protection Degree | IP 67 |
| Overload trip point | 180mA |
| Connection | 2M/3-wires cable |
| Model | TXFM4-0.8NC |
| Type | Shielded |
| Size | M4 |
| Sensing distance | 0.8mm |
| Material | Stainless steel |
| Operating Voltage | 10~30V DC(Ripple＜10%) |
| Voltage drop | ＜1.5V |
| Load Current | 100mA |
| No load current | ＜10mA |
| Leakage Current | ＜0.01mA |
| Output Type | NPN Open collector， Normally Closed |
| Switch frequency | 2KHz |
| Response Time | 0.1ms |
| Repeat accuracy | ＜1.0%(Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PA66 |
| Operating Temperature | -25℃~+70℃ |
| Protection | Non |
| Protection Degree | IP 67 |
| Overload trip point | 180mA |
| Connection | 2M/3-wires cable |
