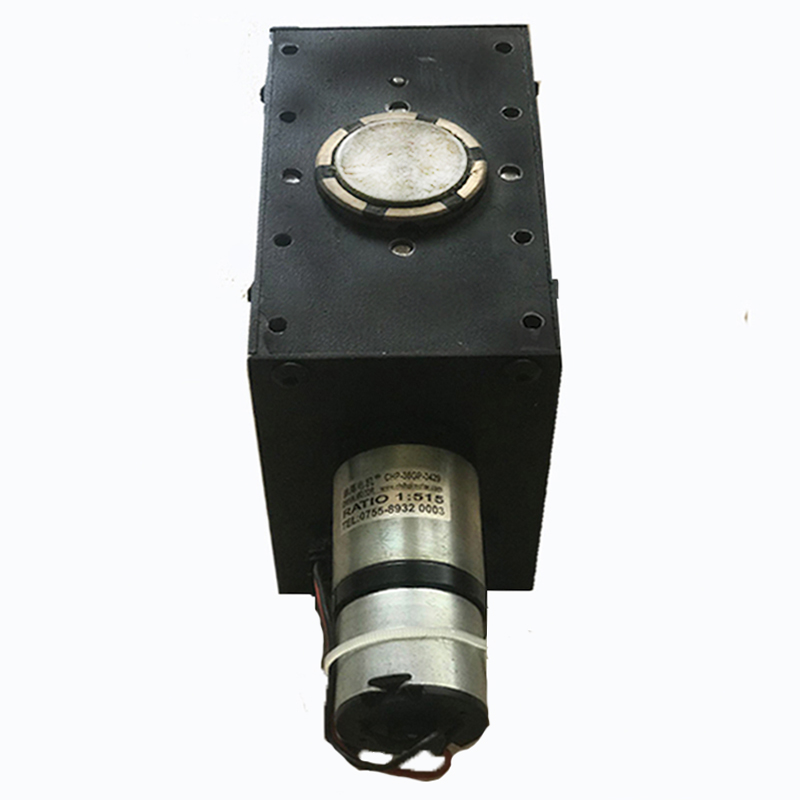

AGV traction rod with limit automatic stop.

AGV trolley traction rod AGV lifting rod.

Thông số kĩ thuật:

◆ power supply voltage: 9-30v;

◆ power consumption: 15W;

◆ logic level: high level 3.3-30v, low level 0V;

◆ traction: 200-1000 kg;

◆ lifting range: 0-50 mm;

◆ lifting protection: lifting limit switch protection to prevent the motor from burning out;

◆ lifting speed: speed 25mm / S;

◆ working humidity: 10-90% RH;

◆ working temperature: – 25 ℃ – + 85 ℃;

◆ protection grade: IP-67;

◆ shell material: iron.

Control Description:

Limit signal description：

Drawing:
