Van điện 2W160-15

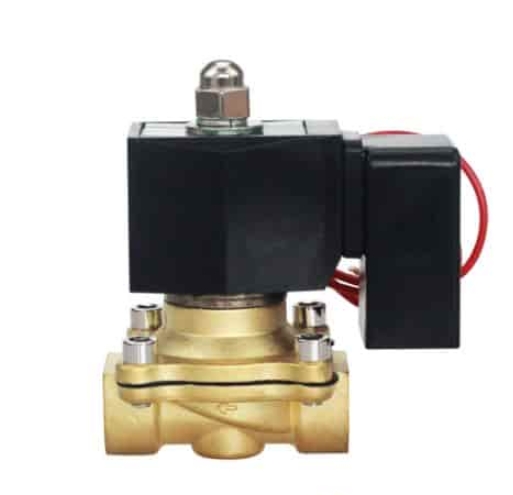

2W Series Solenoid Valve

Features:

1. With a direct-acting diaphragm structure, no pressure start, which expands its application range;
2. Reliable structure opening and closing, enhancing its service life;
3. Use copper coils to improve the safety index of its use in a variety of environments.
4. High quality brass body, lower heat generation, longer life and more stable work;

Working medium: water, gas, oil (non-corrosive)

Mode of operation: normally closed direct acting

Voltage specification: AC220V/ DC24V/ DC12V

Body material: brass

Working temperature: -5~80°C (120°C 150°C)

Working pressure: 0•1Mpa

Notes:

For different voltages, please choose non-heating up kind. Coil will not generate heat even long-term energized; and it can save power, which is equivalent to 1/5 of the power consumption of ordinary solenoid valves; no leakage magnetic noise.
