Xi lanh xoay QCK16x20S

Name: Xi lanh xoay QCK16x20S
SKU: 3445
Price: 1 VND
Availability: InStock

1 ₫

Thông số kỹ thuật xi lanh quay Airtac QCK16x20S

đại lý QCK16x20S | nhà phân phối QCK16x20S | đại lý Airtac

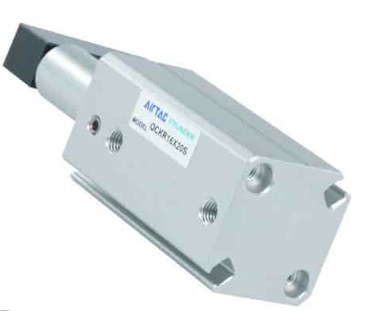

AirTAC QCK16X20S Rotary Clamp Cylinder

Product feature

It can be used on welding fixfure, the QPQ surface treatment prevent piston rod damage by welding slag; better than chrome plated piston rod.
The front cover with stainless steel dust scraping ring, can keep the dust and welding slag out, and protect cylinder internal parts.
The mounting dimension of body is the same as ACQ series, can use ACQ series` accessories.

Ordering code

QCK Series Ordering code

Specification

Bore size(mm)	12	16	20	25	32	40	50	63
Acting type	Double acting
Fluid	Air(to be filtered by 40µm filter element)
Operating pressure	0.2~1.0MPa(29~145psi)(2.0~10bar)	0.15~1.0MPa(22~145psi)(1.5~10bar)
Proof pressure	1.5MPa(215psi)(15bar)
Temperature	-20~70℃
Speed range	50~200mm/s
Rotation angle	90°
Repeatability	±2°
Rotation direction	Turn left or turn right
Rotation stroke(mm)	7.5		9.5		15		19
Clamping stroke(mm)	10 20	10 20 30			10 20 30 50
Hành trình tolerance	₀^1.0
Cushion type	Bumper
Port size [Note1]	M5x0.8				1/8”		1/4”

Mã hiệu

QCKL16X20S, QCKL16X20SM, QCKR16X20S, QCKR16X20SM.

Dimensions

QCK Series dimensions
