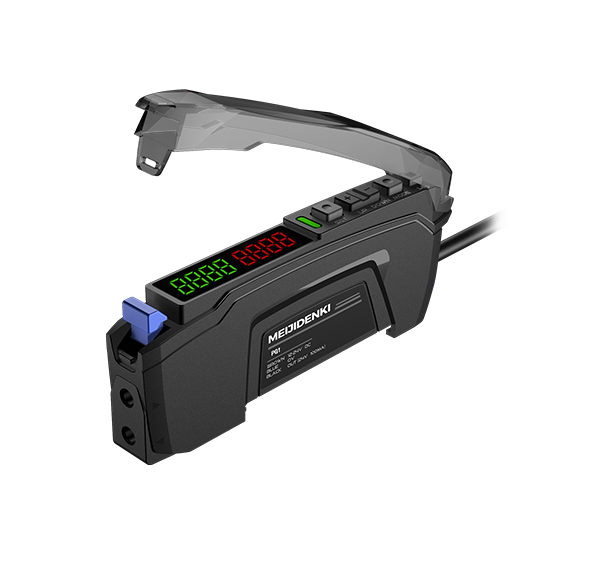

| Model | PG1 | |||
| Emitting Light | Red modulated light 680nm | |||
| Operating Voltage | 8~30V DC | |||
| Saturation Voltage | 25mA＜1.2V，100mA＜2V | |||
| Load Current | ＜50mA | |||
| Output Current | ＜200mA | |||
| Leakage Current | ＜100uA | |||
| Output Type | NPN/PNP Open collector | |||
| Switch Mode | L.on ( Light.ON )/D.on ( Dark.ON ) Can be customized | |||
| Display | 7 segment 8 digit display(red:4 digit; green:4 digit) | |||
| Response Time | 50μs(High Speed)/250μs(Fine)/500μs(Turbo/High Resolution)/1ms(Super Turbo)/4ms(Ultra Turbo) | |||
| Delay Timer | ＜50ms | |||
| Operating Temperature | -10°C～＋60°C | |||
| Operating Humid | 35~85%RH | |||
| Ambient illuminance | Sunlight≤10000Lux | |||
| Protection | Short-circuit Protection， Reversed Polarity Protection， Surge Protection | |||
| Shock resistance | 10G(1500m/s2)，XYZ each direction | |||
| Vibration resistance | 10~55Hz amplitude 1.5mm,XYZ each direction， 2 hours | |||
| Certification | CE | |||
