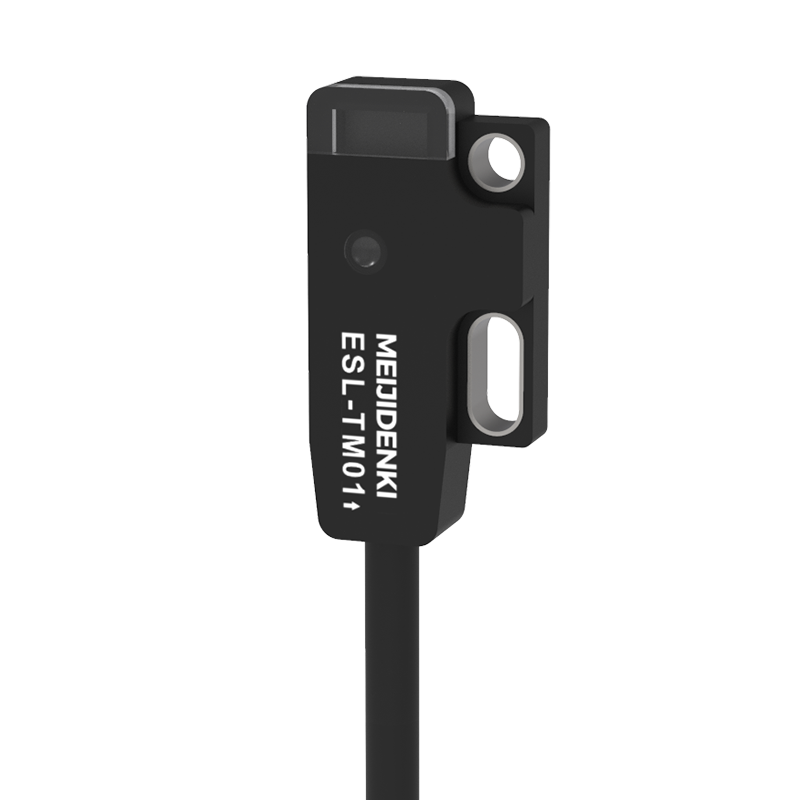

| Model | ESL-TM01PO |
| Sensing type | Thru beam |
| Sensing distance | 1m ( fixed ) |
| Light sourse | Red light |
| Detection object | Opaque,φ＞2 mm |
| Output type | NPN Open – collector, ≤100mA |
| Swtich type | L.on |
| Indicator | Motion indicator-orange; Powe green |
| Response time | ≤1.2ms |
| Warming up | – |
| Operating voltage | 10~30V DC±10% |
| Residual voltage | <2V (load current <50mA) |
| Load current | <20mA |
| Current consumption | < 50mA |
| Protect the circuit | Reverse polarity protection/surge protection/short circuit protection |
| Ambient light | Sunlight≤ 10,000Lux, Incandescent lamp≤3,000Lux |
| Ambient temperature | Working temperature:–25℃~+55℃, No freezing；storage: -10 – +55℃ |
| Ambient humidity | Working: 35%-85%RH; Storage: 35%-95%RH, no condensation |
| Withstand voltage | ±500V 50/60Hz 60s |
| Static electricity | ±8000V |
| Group pulse | ±2000V (5kHZ/50kHZ/1 OOkHZ ) |
| Anti-vibration | 10-50Hz, 0.5mm amplitude, 2 hours each in X, Y, Z directions |
| Protective degree | IP67 |
| Connection | φ2.5* 2M /3 core cable |
| Material | PC |
| Accessories | Mounting screws |
| Model | ESL-TM01NO |
| Sensing type | Thru beam |
| Sensing distance | 1m ( fixed ) |
| Light sourse | Red light |
| Detection object | Opaque,φ＞2 mm |
| Output type | NPN Open – collector, ≤100mA |
| Swtich type | L.on |
| Indicator | Motion indicator-orange; Powe green |
| Response time | ≤1.2ms |
| Warming up | – |
| Operating voltage | 10~30V DC±10% |
| Residual voltage | <2V (load current <50mA) |
| Load current | <20mA |
| Current consumption | < 50mA |
| Protect the circuit | Reverse polarity protection/surge protection/short circuit protection |
| Ambient light | Sunlight≤ 10,000Lux, Incandescent lamp≤3,000Lux |
| Ambient temperature | Working temperature:–25℃~+55℃, No freezing；storage: -10 – +55℃ |
| Ambient humidity | Working: 35%-85%RH; Storage: 35%-95%RH, no condensation |
| Withstand voltage | ±500V 50/60Hz 60s |
| Static electricity | ±8000V |
| Group pulse | ±2000V (5kHZ/50kHZ/1 OOkHZ ) |
| Anti-vibration | 10-50Hz, 0.5mm amplitude, 2 hours each in X, Y, Z directions |
| Protective degree | IP67 |
| Connection | φ2.5* 2M /3 core cable |
| Material | PC |
| Accessories | Mounting screws |
