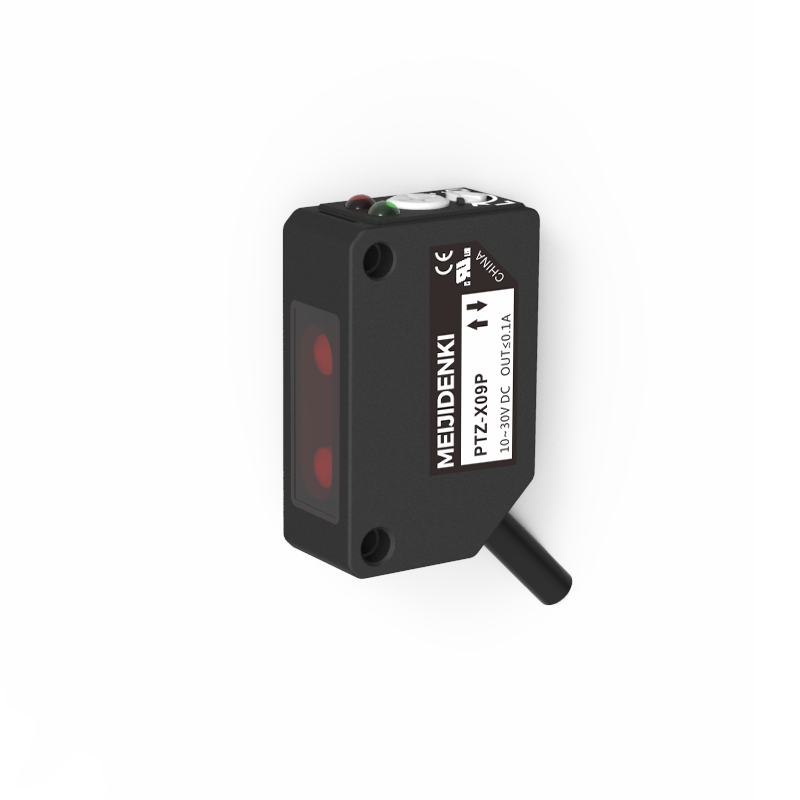

| Model | PTZ-X09P |
| Sensing method | Limited Reflective |
| Sensing distance | 1~14cm |
| Spot size | φ8mm / 90mm |
| Switch hysteresis | ≤10% |
| Output Type | PNP Open collector,≤100mA/30V DC |
| Switch Mode | L.on ( Light.ON )/D.on ( Dark.ON ) Selectable output types |
| Indicator | Ouptut Indicator： Orange； Indicator ： green |
| Response Time | 0.5 ms |
| Sensitivity setting | Single-turn Potentiometer(240°) |
| Emitting Light | Red LED |
| Operating Voltage | 10~30V DC±10% |
| Current Consumption | ≤20mA |
| Ambient illuminance | Sunlight≤10000Lux； Incandescent lamp≤3000Lux |
| Operating Temperature | -25~+55℃, No freezing |
| Operating Humid | 35~85%RH, No freezing |
| Vibration resistance | 100G(1000m/s2) |
| Protection Degree | IP 67 |
| Material | Anti-bacterial ABS (housing), PMMA (lens) |
| Wiring Method | 2M/3-wires cable |
| Model | PTZ-X09N |
| Sensing method | Limited Reflective |
| Sensing distance | 1~14cm |
| Spot size | φ8mm / 90mm |
| Switch hysteresis | ≤10% |
| Output Type | NPN Open collector,≤100mA/30V DC |
| Switch Mode | L.on ( Light.ON )/D.on ( Dark.ON ) Selectable output types |
| Indicator | Ouptut Indicator： Orange； Indicator ： green |
| Response Time | 0.5 ms |
| Sensitivity setting | Single-turn Potentiometer(240°) |
| Emitting Light | Red LED |
| Operating Voltage | 10~30V DC±10% |
| Current Consumption | ≤20mA |
| Ambient illuminance | Sunlight≤10000Lux； Incandescent lamp≤3000Lux |
| Operating Temperature | -25~+55℃, No freezing |
| Operating Humid | 35~85%RH, No freezing |
| Vibration resistance | 100G(1000m/s2) |
| Protection Degree | IP 67 |
| Material | Anti-bacterial ABS (housing), PMMA (lens) |
| Wiring Method | 2M/3-wires cable |
