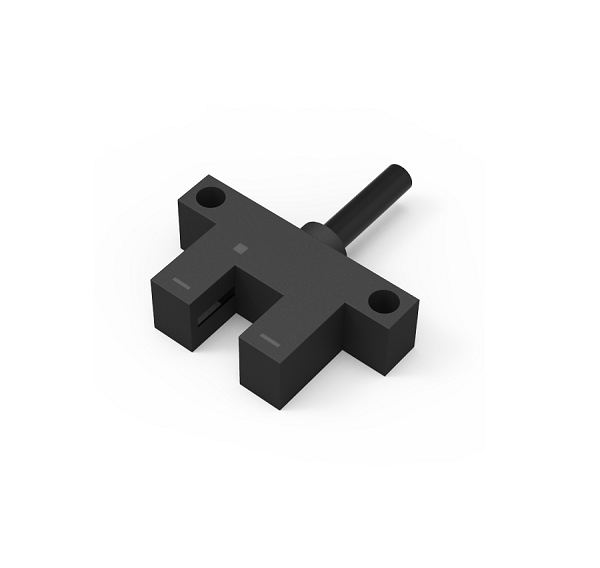

| Model | SK-206N-H4 |
| Shell Material | K -Type |
| Sensing distance | 5mm( Slot width) |
| Standard detectable object | 1.8*0.8 mm |
| Repeat accuracy | 0.03 mm |
| Emitting Light | Infrared LED(940nm) |
| Output Type | NPN or PNP Open collector |
| Switch Mode | L.on( Light.ON)/D.on( Dark.ON) Selectable output types |
| Indicator | When an object is detected ON, No object OFF |
| Switch frequency | >1KHz |
| Operating Voltage | 5~24V DC |
| Residual voltage | 3V ( Load Current100mA) |
| Current Consumption | 3-100mA |
| Protection | Surge Protection， Reversed Polarity Protection |
| Ambient illuminance | <1000lux |
| Operating Temperature | On：-25~+55℃ storage：-30~+80℃ No freezing |
| Operating Humid | On：35~85%RH storage：35~95%RH No freezing |
| Shock resistance | 300m/s2 , XYZ 10 times |
| Vibration resistance | 10 to 55 Hz amplitude 1.5 mm in the X, Y, Z axis directions respectively, 2 hours |
| Material | PBT |
| Wiring Method | 2M 4-wires cable |
