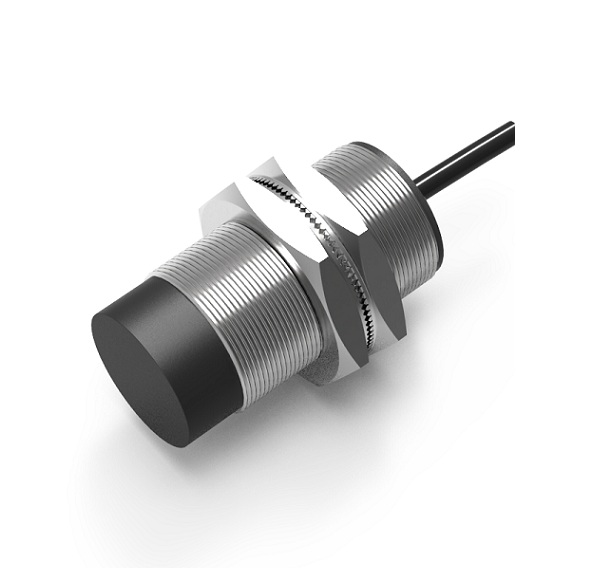

| Model | TDN30-15HO |
| Type | Non-Shielded |
| Size | M30 |
| Sensing distance | 15mm |
| Material | Nickel plated brass |
| Operating Voltage | 10~60V DC |
| Consecutive wave | ＜10% |
| Operating Current | 3~100mA |
| Leakage Current | ＜0.8mA |
| Voltage drop | ＜6V |
| Protection | Short-circuit Protection |
| Over-current | ＞120mA |
| Output Type | 2 Wires DC , Normally Open |
| Switch frequency | 200Hz |
| Hysteresis | 15% |
| Temperature drift | ＜10% |
| Repeat accuracy | ＜2% |
| Operating Temperature | -25℃~+70℃ |
| Material active face | PBT |
| Connection | 2M/2-wires cable |
| Model | TDN30-15HC |
| Type | Non-Shielded |
| Size | M30 |
| Sensing distance | 15mm |
| Material | Nickel plated brass |
| Operating Voltage | 10~60V DC |
| Consecutive wave | ＜10% |
| Operating Current | 3~100mA |
| Leakage Current | ＜0.8mA |
| Voltage drop | ＜6V |
| Protection | Short-circuit Protection |
| Over-current | ＞120mA |
| Output Type | 2 Wires DC , Normally Closed |
| Switch frequency | 200Hz |
| Hysteresis | 15% |
| Temperature drift | ＜10% |
| Repeat accuracy | ＜2% |
| Operating Temperature | -25℃~+70℃ |
| Material active face | PBT |
| Connection | 2M/2-wires cable |
