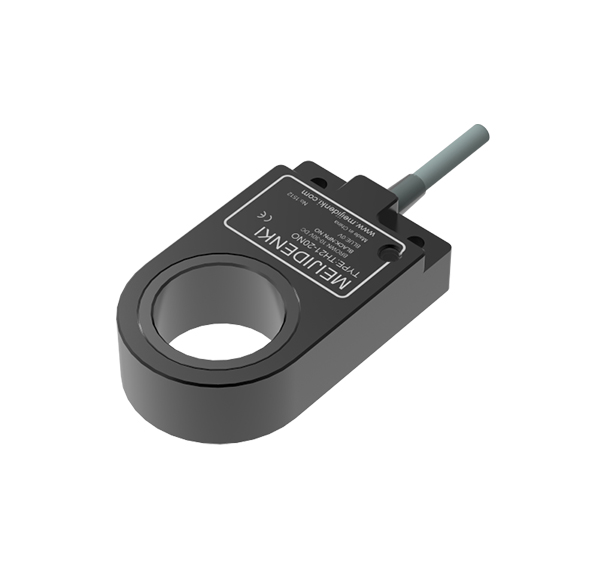

| Model | TH21-20PO |
| Hole Diameter | 22.5mm |
| Hole Height | 20mm |
| Material | ABS |
| Operating Voltage | 10-30V DC |
| Voltage drop | ＜1.5V |
| Load Current | 150mA |
| No load current | ＜15mA |
| Leakage Current | ＜10mA |
| Output Type | PNP, Normally Open |
| Switch frequency | 1KHz |
| Detection capability | D=6mm;L=12mm |
| Repeat accuracy | ＜2.0% (Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PBT |
| Operating Temperature | -25℃~+70℃ |
| Protection | Short-circuit Protection/ Reversed Polarity Protection |
| Protection Degree | IP67 |
| Overload trip point | 180mA |
| Model | TH21-20PC |
| Hole Diameter | 22.5mm |
| Hole Height | 20mm |
| Material | ABS |
| Operating Voltage | 10-30V DC |
| Voltage drop | ＜1.5V |
| Load Current | 150mA |
| No load current | ＜15mA |
| Leakage Current | ＜10mA |
| Output Type | PNP, Normally Closed |
| Switch frequency | 1KHz |
| Detection capability | D=6mm;L=12mm |
| Repeat accuracy | ＜2.0% (Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PBT |
| Operating Temperature | -25℃~+70℃ |
| Protection | Short-circuit Protection/ Reversed Polarity Protection |
| Protection Degree | IP67 |
| Overload trip point | 180mA |
| Model | TH21-20NC |
| Hole Diameter | 22.5mm |
| Hole Height | 20mm |
| Material | ABS |
| Operating Voltage | 10-30V DC |
| Voltage drop | ＜1.5V |
| Load Current | 150mA |
| No load current | ＜15mA |
| Leakage Current | ＜10mA |
| Output Type | NPN, Normally Closed |
| Switch frequency | 1KHz |
| Detection capability | D=6mm;L=12mm |
| Repeat accuracy | ＜2.0% (Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PBT |
| Operating Temperature | -25℃~+70℃ |
| Protection | Short-circuit Protection/ Reversed Polarity Protection |
| Protection Degree | IP67 |
| Overload trip point | 180mA |
| Model | TH21-20NO |
| Hole Diameter | 22.5mm |
| Hole Height | 20mm |
| Material | ABS |
| Operating Voltage | 10-30V DC |
| Voltage drop | ＜1.5V |
| Load Current | 150mA |
| No load current | ＜15mA |
| Leakage Current | ＜10mA |
| Output Type | NPN, Normally Open |
| Switch frequency | 1KHz |
| Detection capability | D=6mm;L=12mm |
| Repeat accuracy | ＜2.0% (Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PBT |
| Operating Temperature | -25℃~+70℃ |
| Protection | Short-circuit Protection/ Reversed Polarity Protection |
| Protection Degree | IP67 |
| Overload trip point | 180mA |
