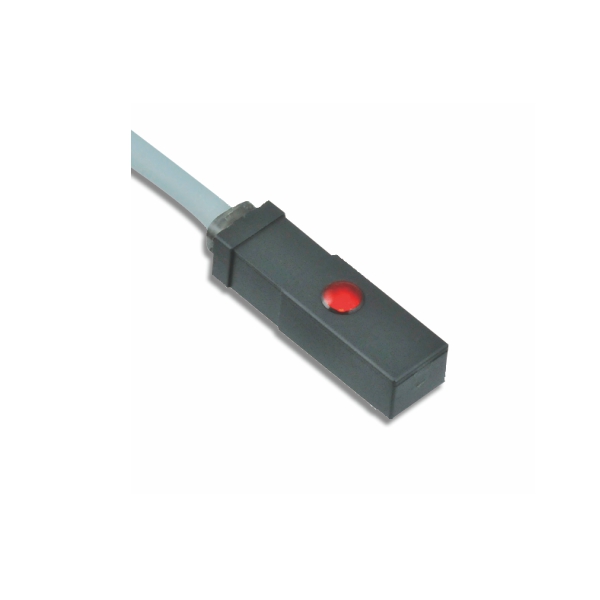

| Model | MR-C6-S |
| Suitable type | T-Type |
| Features | 内置 Indicator |
| Operating Voltage | 5~24V DC |
| Sensing pole | S-Pole |
| Magnetic sensitivity | 2.5~3.5mT |
| Response time | 5 us |
| Output Type | NPN Normally Open(N.O)( Normal open) |
| Output Current | ≤12mA |
| Current Consumption | ≤12mA |
| Voltage Withstandabiligy | AC1000V 60 Sec. |
| Insulation Resistance | 250V DC≥20MΩ |
| Operating Temperature | -20℃~+85℃， No freezing |
| Operating Humid | 20%~95%RH， No freezing |
| Material | GF reinforced PBT: black |
| Indicator | Red |
| Protection Degree | IP67 |
| Wiring Method | 1M/3-wires cable |
| Model | MR-C6-N |
| Suitable type | T-Type |
| Features | 内置 Indicator |
| Operating Voltage | 5~24V DC |
| Sensing pole | N-Pole |
| Magnetic sensitivity | 2.5~3.5mT |
| Response time | 5 us |
| Output Type | NPN Normally Open(N.O)( Normal open) |
| Output Current | ≤12mA |
| Current Consumption | ≤12mA |
| Voltage Withstandabiligy | AC1000V 60 Sec. |
| Insulation Resistance | 250V DC≥20MΩ |
| Operating Temperature | -20℃~+85℃， No freezing |
| Operating Humid | 20%~95%RH， No freezing |
| Material | GF reinforced PBT: black |
| Indicator | Red |
| Protection Degree | IP67 |
| Wiring Method | 1M/3-wires cable |
