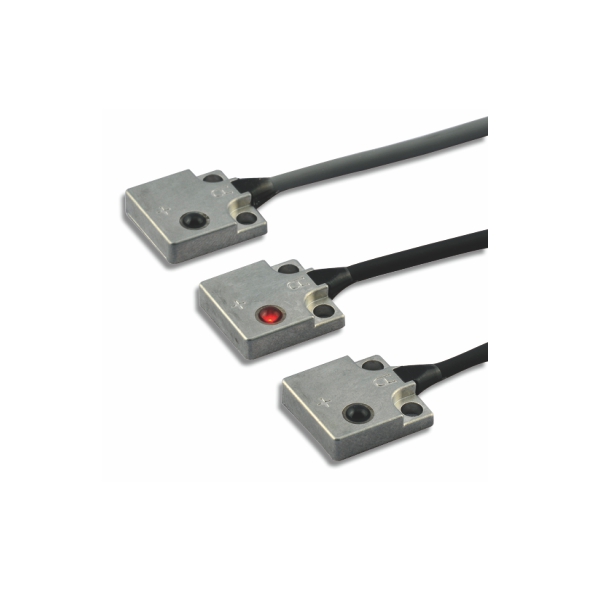

Cảm biến xi lanh MR-C92-N, MR-C92-S

Name: Cảm biến xi lanh MR-C92-N, MR-C92-S
SKU: 1643
Price: 1 VND
Availability: InStock

1 ₫

Mã hàng:

Xuất sứ: MEIJIDENKI (AKUSENSE)

Tình trạng hàng: Còn hàng

Model	MR-C92-N
Suitable type	outer
Features	使用带式 Installation附件，可以 Installation在φ32~φ100的气缸上； Metal Shell，耐水，耐油性
Operating Voltage	12~24V DC
Sensing pole	N-Pole
Magnetic sensitivity	2.5~3.5mT
Response time	50 us
Output Type	…
Output Current	≤50mA MAX
Leakage Current	OFF，0.5mA MAX
Voltage Withstandabiligy	AC1000V 60 Sec.
Insulation Resistance	250V DC≥20MΩ
Operating Temperature	-20℃~+85℃， No freezing
Operating Humid	20%~95%RH， No freezing
Material	Zinc die-cast
Installation	Installation torque 1.5N.m
Indicator	Red
Protection Degree	IP67
Wiring Method	1M/2-wires cable

Model	MR-C92-S
Suitable type	outer
Features	使用带式 Installation附件，可以 Installation在φ32~φ100的气缸上； Metal Shell，耐水，耐油性
Operating Voltage	12~24V DC
Sensing pole	S-Pole
Magnetic sensitivity	2.5~3.5mT
Response time	50 us
Output Type	…
Output Current	≤50mA MAX
Leakage Current	OFF，0.5mA MAX
Voltage Withstandabiligy	AC1000V 60 Sec.
Insulation Resistance	250V DC≥20MΩ
Operating Temperature	-20℃~+85℃， No freezing
Operating Humid	20%~95%RH， No freezing
Material	Zinc die-cast
Installation	Installation torque 1.5N.m
Indicator	Red
Protection Degree	IP67
Wiring Method	1M/2-wires cable
