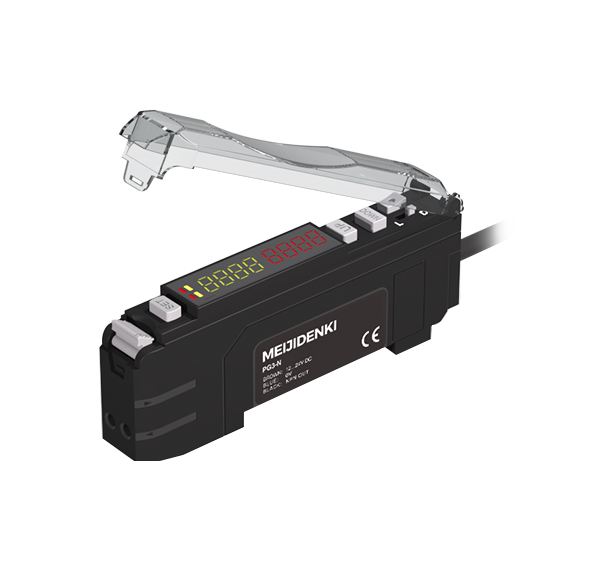

Bộ khuếch đại xạ quang PG3-P, PG3-N

Name: Bộ khuếch đại xạ quang PG3-P, PG3-N
SKU: 1205
Price: 1 VND
Availability: InStock

1 ₫

Mã hàng:

Xuất sứ: MEIJIDENKI (AKUSENSE)

Tình trạng hàng: Còn hàng

Model	PG3-P
Emitting Light	Red LED(630nm)
Operating Voltage	12～24V ±10%
consumption Power	≤20mA
Output Type	PNP Open collector
Switch Mode	L.on( Light.ON)/D.on( Dark.ON) Switching type in function
Response Time	50us(p-0)/200us(p-1)/400us(p-2)/800us(p-3)/6.4ms(p-4)/12.8ms(p-5)/25.6ms(p-6)
Timer	Output off time, output on time, output single time, output time off
Timing	1-9999ms
Other	Parameter initialization / key lock / threshold two points, automatic and manual settings
Advanced	Luminous power and threshold synchronization adjustment
Ambient illuminance	Incandescent lamp：≤20000Lux max, Sunlight：≤30000Lux max
Operating Temperature	-20℃~+55℃
Operating Humid	35～＋85%RH
Protection	Reversed Polarity Protection, Over-current Protection, Surge Protection
Vibration resistance	10~55Hz, full width of 1.5mm, X, Y, Z axis direction of the 2 hours
Shock resistance	500m/s², X, Y, Z axis direction 3 times
Material	PC
Weight	Approx110g ( Include Wires )

Model	PG3-N
Emitting Light	Red LED(630nm)
Operating Voltage	12～24V ±10%
consumption Power	≤20mA
Output Type	NPN Open collector
Switch Mode	L.on( Light.ON)/D.on( Dark.ON) Switching type in function
Response Time	50us(p-0)/200us(p-1)/400us(p-2)/800us(p-3)/6.4ms(p-4)/12.8ms(p-5)/25.6ms(p-6)
Timer	Output off time, output on time, output single time, output time off
Timing	1-9999ms
Other	Parameter initialization / key lock / threshold two points, automatic and manual settings
Advanced	Luminous power and threshold synchronization adjustment
Ambient illuminance	Incandescent lamp：≤20000Lux max, Sunlight：≤30000Lux max
Operating Temperature	-20℃~+55℃
Operating Humid	35～＋85%RH
Protection	Reversed Polarity Protection, Over-current Protection, Surge Protection
Vibration resistance	10~55Hz, full width of 1.5mm, X, Y, Z axis direction of the 2 hours
Shock resistance	500m/s², X, Y, Z axis direction 3 times
Material	PC
Weight	Approx110g ( Include Wires )
