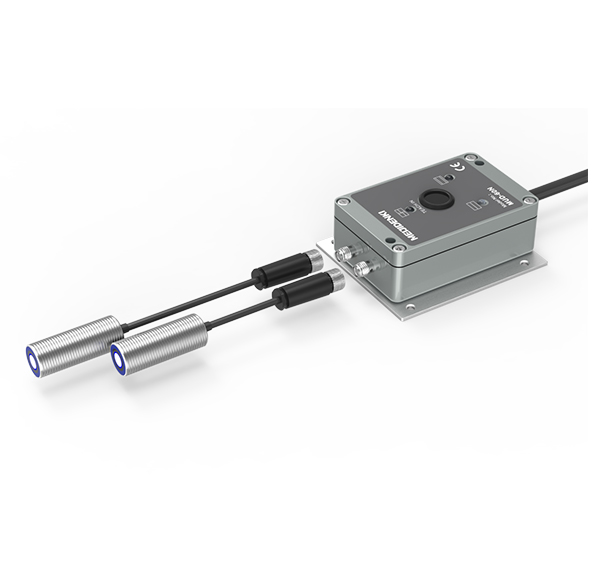

Cảm biến đôi MUD-60N, MUD-60P

Name: Cảm biến đôi MUD-60N, MUD-60P
SKU: 1611
Price: 1 VND
Availability: InStock

1 ₫

Mã hàng:

Xuất sứ: MEIJIDENKI (AKUSENSE)

Tình trạng hàng: Còn hàng

Model	MUD-60N
Sensing distance	20~60mm 45mm best
Launch frequency	200KHz
Operating Voltage(U)	18~30V DC
Operating Voltage( Ripple)	≤15% U
No load current	≤80mA
Output Current	＜200mA
Teach In	Press the key or to short
Teach In times	≥ 5ms
Teach resistance	10kΩ
Out Put	White: single output; black: multiple output
Material	Nickel plated brass
Indicator	Green light: no detection after alignment; yellow light: single layer of detection; red light: multi-layer detection
Operating Temperature	0℃~60℃
Interface	M12Sensor-Actuator Receptacle
Protection Degree	IP65

Model	MUD-60P
Sensing distance	20~60mm 45mm best
Launch frequency	200KHz
Operating Voltage(U)	18~30V DC
Operating Voltage( Ripple)	≤15% U
No load current	≤80mA
Output Current	＜200mA
Teach In	Press the key or to short
Teach In times	≥ 5ms
Teach resistance	10kΩ
Out Put	White: single output; black: multiple output
Material	Nickel plated brass
Indicator	Green light: no detection after alignment; yellow light: single layer of detection; red light: multi-layer detection
Operating Temperature	0℃~60℃
Interface	M12Sensor-Actuator Receptacle
Protection Degree	IP65
