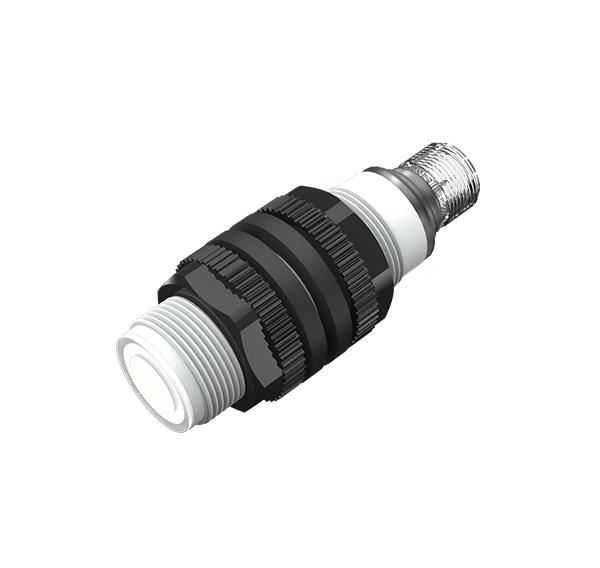

| Model | MS18-30V |
| Sensing distance | 40-300mm |
| Repeat accuracy | 2% |
| Hysteresis | 2% |
| Linearity Deviation | ≤3% |
| Resolution | 2mm |
| Open angle | ±10° |
| Switch frequency | 40Hz |
| Response Time( Digital) | 12ms |
| Response Time( Analog Ouptut) | 500ms |
| Operating Voltage | 15-30V DC (±5%) |
| Temperature drift | ＜7% |
| Temperature compensation | Yes |
| Residual voltage | 2.2Vmax(1L=100mA) |
| Current Consumption | ≤35mA |
| Max Load Current | 100mA |
| Leakage Current | ≤10μA@30VDC |
| Sensitivity setting | Outer teach-in |
| Operating delay | ≤900ms( Analog) |
| Operating Temperature | -20~﹢60℃ |
| Storage Temperature | -35℃~﹢70℃( No freezing) |
| Protection | Reversed Polarity Protection， Short circuit， Overvoltage protection |
| Protection Degree | IP67 |
| Tightening torque | 1Nm |
| Material | PBT |
| Material active face | Epoxy glass resin |
| Weight | 15g |
| Model | MS18-30P |
| Sensing distance | 40-300mm |
| Repeat accuracy | 2% |
| Hysteresis | 2% |
| Linearity Deviation | ≤3% |
| Resolution | 2mm |
| Open angle | ±10° |
| Switch frequency | 40Hz |
| Response Time( Digital) | 12ms |
| Response Time( Analog Ouptut) | 500ms |
| Operating Voltage | 15-30V DC (±5%) |
| Temperature drift | ＜7% |
| Temperature compensation | Yes |
| Residual voltage | 2.2Vmax(1L=100mA) |
| Current Consumption | ≤35mA |
| Max Load Current | 100mA |
| Leakage Current | ≤10μA@30VDC |
| Sensitivity setting | Outer teach-in |
| Operating delay | ≤300ms( Switch) |
| Operating Temperature | -20~﹢60℃ |
| Storage Temperature | -35℃~﹢70℃( No freezing) |
| Protection | Reversed Polarity Protection， Short circuit， Overvoltage protection |
| Protection Degree | IP67 |
| Tightening torque | 1Nm |
| Material | PBT |
| Material active face | Epoxy glass resin |
| Weight | 15g |
| Model | MS18-30N |
| Sensing distance | 40-300mm |
| Repeat accuracy | 2% |
| Hysteresis | 2% |
| Linearity Deviation | ≤3% |
| Resolution | 2mm |
| Open angle | ±10° |
| Switch frequency | 40Hz |
| Response Time( Digital) | 12ms |
| Response Time( Analog Ouptut) | 500ms |
| Operating Voltage | 15-30V DC (±5%) |
| Temperature drift | ＜7% |
| Temperature compensation | Yes |
| Residual voltage | 2.2Vmax(1L=100mA) |
| Current Consumption | ≤35mA |
| Max Load Current | 100mA |
| Leakage Current | ≤10μA@30VDC |
| Sensitivity setting | Outer teach-in |
| Operating delay | ≤300ms( Switch) |
| Operating Temperature | -20~﹢60℃ |
| Storage Temperature | -35℃~﹢70℃( No freezing) |
| Protection | Reversed Polarity Protection， Short circuit， Overvoltage protection |
| Protection Degree | IP67 |
| Tightening torque | 1Nm |
| Material | PBT |
| Material active face | Epoxy glass resin |
| Weight | 15g |
| Model | MS18-30I |
| Sensing distance | 40-300mm |
| Repeat accuracy | 2% |
| Hysteresis | 2% |
| Linearity Deviation | ≤3% |
| Resolution | 2mm |
| Open angle | ±10° |
| Switch frequency | 40Hz |
| Response Time( Digital) | 12ms |
| Response Time( Analog Ouptut) | 500ms |
| Operating Voltage | 15-30V DC (±5%) |
| Temperature drift | ＜7% |
| Temperature compensation | Yes |
| Residual voltage | 2.2Vmax(1L=100mA) |
| Current Consumption | ≤35mA |
| Max Load Current | 100mA |
| Leakage Current | ≤10μA@30VDC |
| Sensitivity setting | Outer teach-in |
| Operating delay | ≤900ms( Analog) |
| Operating Temperature | -20~﹢60℃ |
| Storage Temperature | -35℃~﹢70℃( No freezing) |
| Protection | Reversed Polarity Protection， Short circuit， Overvoltage protection |
| Protection Degree | IP67 |
| Tightening torque | 1Nm |
| Material | PBT |
| Material active face | Epoxy glass resin |
| Weight | 15g |
