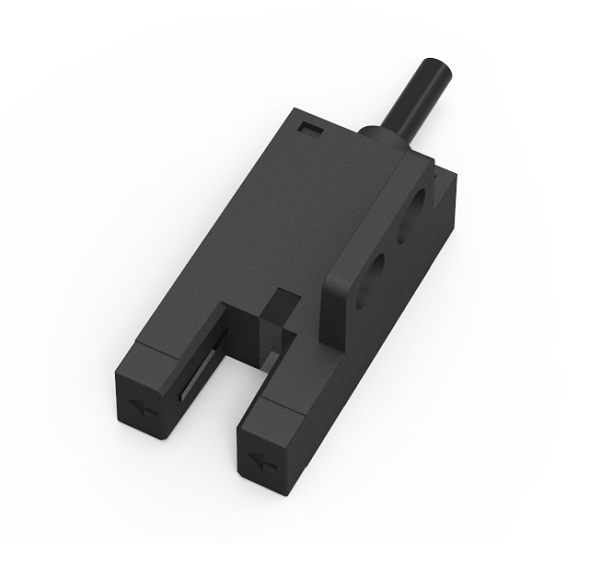

| Model | SF-302N |
| Shell Material | F -Type |
| Slot width | 5mm |
| Standard detectable object | 0.8*1.8 mm |
| Repeat accuracy | 0.025 mm |
| Switch frequency | 1KHz( 3KHz Max) |
| Response Time | ≤0.3 ms |
| Output Type | NPN Open collector， Normally Open/ Normally Closed Can be customized |
| Switch Mode | L.on ( Light.ON )/D.on ( Dark.ON ) Can be customized |
| Indicator | When an object is detected ON |
| Operating Voltage | 5-24V DC |
| Emitting Light | Infrared LED(940nm) |
| Protection | Reversed Polarity Protection |
| Operating Temperature | -10~+55℃ No freezing |
| Operating Humid | 25~85%RH |
| Protection Degree | IP50 |
| Shell Material Material | PC |
| Wiring Method | 2M/4-Wires cable |
