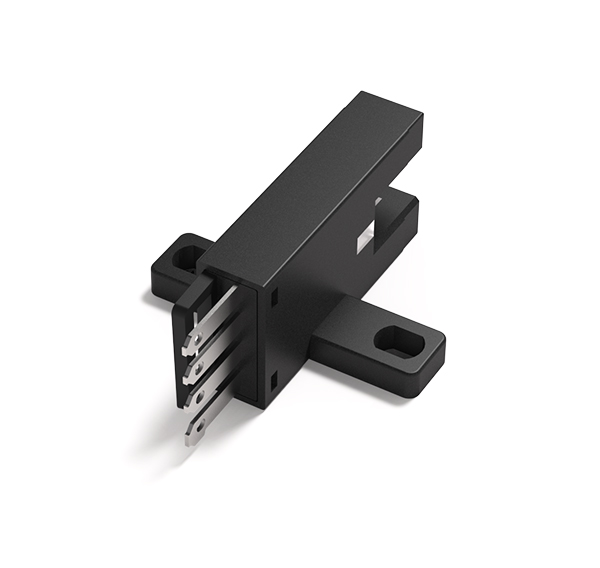

| Model | ST-303NA-E |
| Shell Material | T-Type |
| Sensing distance | 5mm( Slot width) |
| Standard detectable object | 0.8*1.8 mm |
| Repeat accuracy | 0.03 mm |
| Output Type | NPN Open collector， Normally Open/ Normally Closed Can be customized |
| Switch Mode | L.on ( Light.ON )/D.on ( Dark.ON ) Can be customized |
| Indicator | Red LED |
| Switch frequency | 5KHz |
| Response Time | ≤0.3 ms |
| Emitting Light | Infrared LED(950nm) |
| Operating Voltage | 5~24V DC |
| Residual voltage | 0.2V( Load Current10mA),0.6v( Load Current50mA) |
| Current Consumption | ≤20mA |
| Protection | Surge Protection, Reversed Polarity Protection |
| Operating Temperature | -10~+55℃, No freezing |
| Operating Humid | 25~85%RH, No freezing |
| Ambient illuminance | Incandescent lamp≤1000Lux |
| Protection Degree | IP50 |
| Shell Material Material | PC |
| Wiring Method | Connector |
