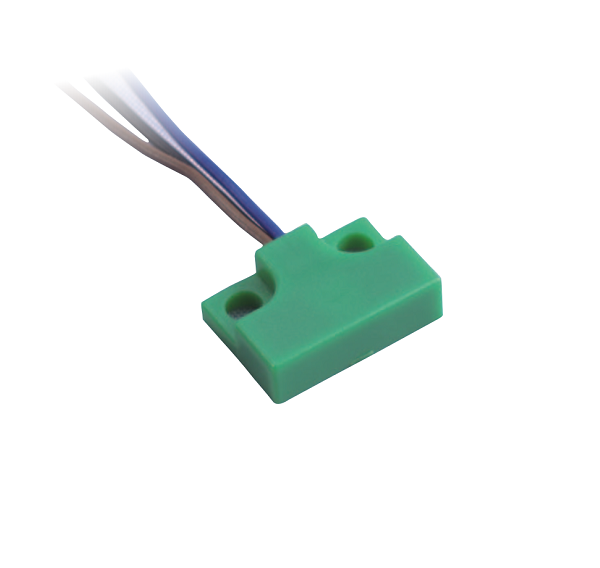

| Model | MR-P4-H |
| Features | 体积小，厚度仅 Yes3.5mm |
| Operating Voltage | 5~24V DC |
| Sensing pole | S-Pole |
| Detecting face | Head |
| Magnetic sensitivity | 2.5~3.5mT |
| Response time | 5 μsec max. |
| Output Type | NPN， Normally Open |
| Output Current | ≤15mA |
| Current Consumption | ≤15mA |
| Voltage Withstandabiligy | AC1000V 60 Sec. |
| Insulation Resistance | 250V DC≥20MΩ |
| Operating Temperature | -20℃~+85℃， No freezing |
| Operating Humid | 20%~95%RH， No freezing |
| Material | GF reinforced PBT： green |
| Protection Degree | IP65 |
| Installation | M2 Screw fastening torque 0.15N·m |
| Indicator | Red |
| Connection | 0.3M/3-wires cable |
