| Model | MR-T8B |
| Operating Voltage | 5~24V DC |
| Repeatable precision | ±0.001mm |
| Stroke［FT］ | 3mm |
| Operation force | 0.6N |
| Idle margin to operation［PT］ | 0.4~0.7mm |
| Hysteresis［MD］ | 0.1 mm |
| Switch frequency | 120 times/ Minute. |
| Output Type | NPN， Normally Open |
| Output Current | ≤15mA |
| Current Consumption | ≤15mA |
| Indicator | Non |
| Voltage Withstandabiligy | AC1000V 60 Sec. |
| Insulation Resistance | 250V DC ≥20MΩ |
| Operating Temperature | -20℃~+85℃， No freezing |
| Operating Humid | 20%~95%RH， No freezing |
| Material | Shell：SUS303 |
| Installation | M 8 Clamping torque：5N·m |
| Protection Degree | IP 67 |
| Connection | 1M/3-wires cable |
| Model | MR-T8B-TX |
| Operating Voltage | 5~24V DC |
| Repeatable precision | ±0.001mm |
| Stroke［FT］ | 3mm |
| Operation force | 0.6N |
| Idle margin to operation［PT］ | 0.4~0.7mm |
| Hysteresis［MD］ | 0.1 mm |
| Switch frequency | 120 times/ Minute. |
| Output Type | NPN， Normally Open |
| Output Current | ≤15mA |
| Current Consumption | ≤15mA |
| Protective cover material | Ceramic patch |
| Indicator | Non |
| Voltage Withstandabiligy | AC1000V 60 Sec. |
| Insulation Resistance | 250V DC ≥20MΩ |
| Operating Temperature | -20℃~+85℃， No freezing |
| Operating Humid | 20%~95%RH， No freezing |
| Material | Shell：SUS303 |
| Installation | M 8 Clamping torque：5N·m |
| Protection Degree | IP 67 |
| Connection | 1M/3-wires cable |
| Model | MR-T8B-B-TX |
| Operating Voltage | 5~24V DC |
| Repeatable precision | ±0.001mm |
| Stroke［FT］ | 3mm |
| Operation force | 0.6N |
| Idle margin to operation［PT］ | 0.4~0.7mm |
| Hysteresis［MD］ | 0.1 mm |
| Switch frequency | 120 times/ Minute. |
| Output Type | NPN， Normally Closed |
| Output Current | ≤15mA |
| Current Consumption | ≤15mA |
| Protective cover material | Ceramic patch |
| Indicator | Non |
| Voltage Withstandabiligy | AC1000V 60 Sec. |
| Insulation Resistance | 250V DC ≥20MΩ |
| Operating Temperature | -20℃~+85℃， No freezing |
| Operating Humid | 20%~95%RH， No freezing |
| Material | Shell：SUS303 |
| Installation | M 8 Clamping torque：5N·m |
| Protection Degree | IP 67 |
| Connection | 1M/3-wires cable |
| Model | MR-T8B-B |
| Operating Voltage | 5~24V DC |
| Repeatable precision | ±0.001mm |
| Stroke［FT］ | 3mm |
| Operation force | 0.6N |
| Idle margin to operation［PT］ | 0.4~0.7mm |
| Hysteresis［MD］ | 0.1 mm |
| Switch frequency | 120 times/ Minute. |
| Output Type | NPN， Normally Closed |
| Output Current | ≤15mA |
| Current Consumption | ≤15mA |
| Protective cover material | Stainless steel |
| Indicator | Non |
| Voltage Withstandabiligy | AC1000V 60 Sec. |
| Insulation Resistance | 250V DC ≥20MΩ |
| Operating Temperature | -20℃~+85℃， No freezing |
| Operating Humid | 20%~95%RH， No freezing |
| Material | Shell：SUS303 |
| Installation | M 8 Clamping torque：5N·m |
| Protection Degree | IP 67 |
| Connection | 1M/3-wires cable |

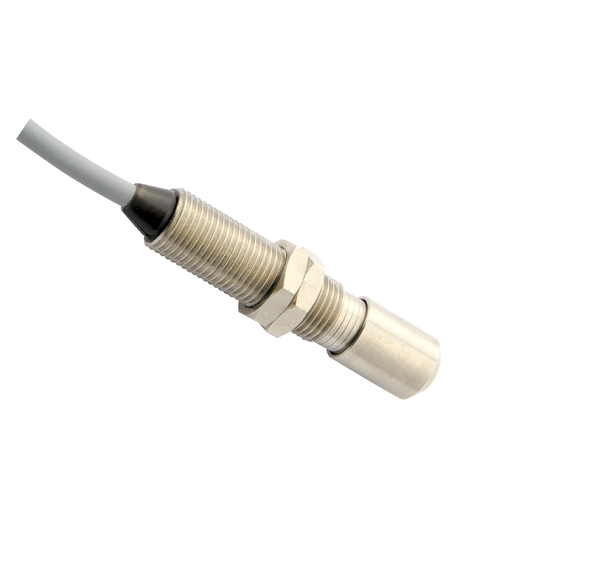

Be the first to review “Cảm biến tiếp xúc MR-T8B, MR-T8B-TX, MR-T8B-B-TX, MR-T8B-B”
