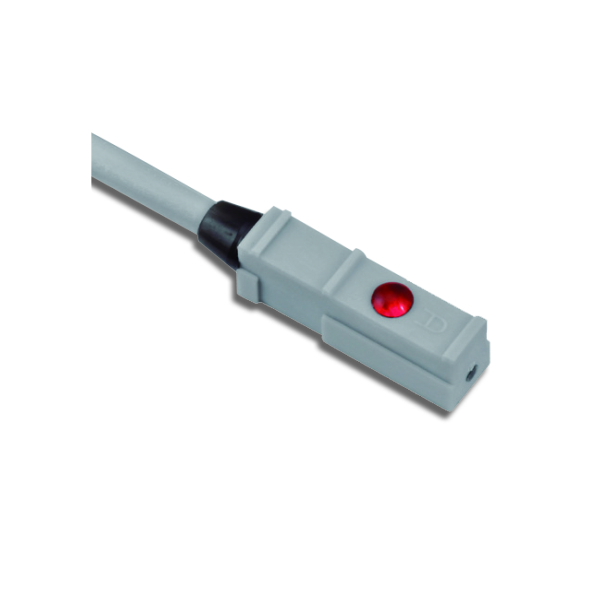

| Model | MR-C12-S |
| Suitable type | T-Type |
| Features | 可替代气缸用舌簧传感器的2 式，也适合于气动手指等小 Stroke［FT］的气缸 |
| Operating Voltage | 12~24V DC |
| Sensing pole | S-Pole |
| Magnetic sensitivity | 2.5~3.5mT |
| Response time | 50 us |
| Output Type | … |
| Output Current | ≤50mA |
| Leakage Current | OFF，0.5mA MAX |
| Voltage Withstandabiligy | AC1000V 60 Sec. |
| Insulation Resistance | 250V DC≥20MΩ |
| Operating Temperature | -20℃~+85℃， No freezing |
| Operating Humid | 20%~95%RH， No freezing |
| Material | GF reinforced PBT: gray |
| Indicator | Red |
| Protection Degree | IP67 |
| Wiring Method | 1M/2-wires cable |
| Model | MR-C12-N |
| Suitable type | T-Type |
| Features | 可替代气缸用舌簧传感器的2 式，也适合于气动手指等小 Stroke［FT］的气缸 |
| Operating Voltage | 12~24V DC |
| Sensing pole | N-Pole |
| Magnetic sensitivity | 2.5~3.5mT |
| Response time | 50 us |
| Output Type | … |
| Output Current | ≤50mA |
| Leakage Current | OFF，0.5mA MAX |
| Voltage Withstandabiligy | AC1000V 60 Sec. |
| Insulation Resistance | 250V DC≥20MΩ |
| Operating Temperature | -20℃~+85℃， No freezing |
| Operating Humid | 20%~95%RH， No freezing |
| Material | GF reinforced PBT: gray |
| Indicator | Red |
| Protection Degree | IP67 |
| Wiring Method | 1M/2-wires cable |
